Underslung Form Traveller

A self-launching form traveller for cast-in-situ balanced cantilever construction, carrying its formwork below the deck so that the space above the segment stays clear.

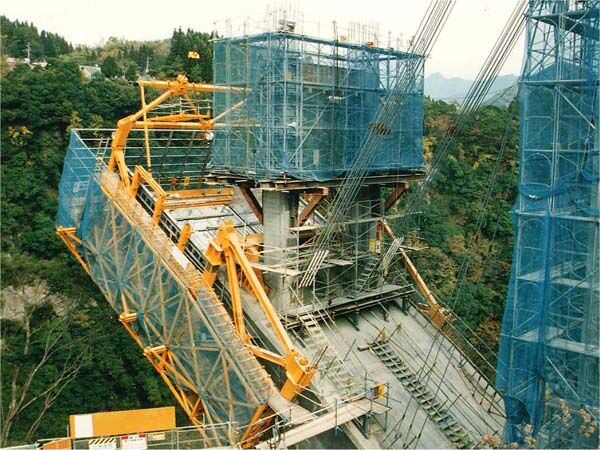

Underslung form traveller supported below the end of a concrete bridge deck cantilever, with stay cables above.

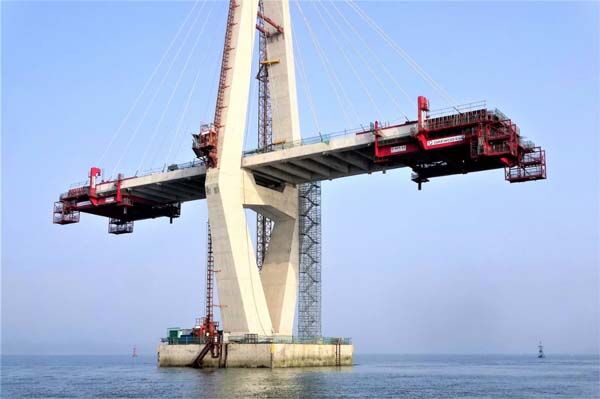

Underslung form traveller supported below the deck soffit during balanced-cantilever construction.

Key specifications

Segment length
7–10 mAs required in cable-stayed bridges
Segment weight
50–450 tIncluding concrete and formwork
Launching
Self-launchingAutomated, forward and backward
Configuration
UnderslungClear space above the segment
Overview

What an underslung form traveller does

In cast-in-situ bridge construction, the underslung form traveller suits balanced-cantilever work that requires unobstructed clearance above the formwork. The traveller structure is carried beneath the deck rather than over it, so the area above the segment remains free. This makes the configuration suitable for cable-stayed bridges, arch bridges and segments incorporating prefabricated steel cages.

The underslung arrangement also reduces the overall load imposed on the structure while maintaining high stability. Each traveller is engineered around the specific bridge design, load conditions and construction timeline rather than supplied to a fixed standard.

Applications

Applications and construction method

The construction method is cast-in-situ balanced cantilever. The underslung configuration is selected where clearance above the formwork matters, or where longer segments are required.

Suitable structures and situations

  • Cast-in-situ balanced cantilever
  • Cable-stayed bridges
  • Arch bridges
  • Prefabricated steel cage installation
  • Unobstructed clearance above formwork
  • Longer segments
Capability

Ranges, capacity and design considerations

Segment range and capacity

Swipe or scroll horizontally to view the full table.

Segment range and lifting capacity.
Segment length 7–10 m, as required in cable-stayed bridges
Segment weight 50–450 t, including concrete and formwork
Launching movement Automated self-launching, forward and backward
Additional lifting equipment Reduced requirement

Advantages and design considerations

  • Suited to longer segments

    Accommodates the 7–10 m segment lengths required in cable-stayed bridges.

  • Load capacity

    Handles segment weights from 50 to 450 t, including concrete and formwork, giving adaptability across a wide range of project requirements.

  • Self-launching efficiency

    Automated forward and backward movement reduces downtime and the need for additional lifting equipment.

  • Reduced load on the structure

    The underslung configuration lowers the overall load imposed on the structure while maintaining high stability.

  • Fewer construction cycles

    Greater segment capacity means fewer cycles and shorter programme durations.

  • Engineered per project

    Custom engineering support optimises the traveller for the specific bridge design, load conditions and construction timeline.

Configuration

Underslung compared with overhead

Both configurations build by cast-in-situ balanced cantilever and both are self-launching. They differ in segment range, weight range, and where the traveller structure sits relative to the deck.

Swipe or scroll horizontally to view the full table.

Underslung and overhead configurations compared.
Property Underslung (this page) Overhead
Segment length 7–10 m 3–7 m
Segment weight 50–450 t 100–450 t
Shortest pier segment Not specified From 5 m (hammerhead)
Clearance above formwork Unobstructed Not specified
Self-launching Yes, forward and backward Yes, forward and backward
Particularly suited to Cable-stayed and arch bridges; prefabricated steel cages Shorter hammerhead pier segments
Gallery

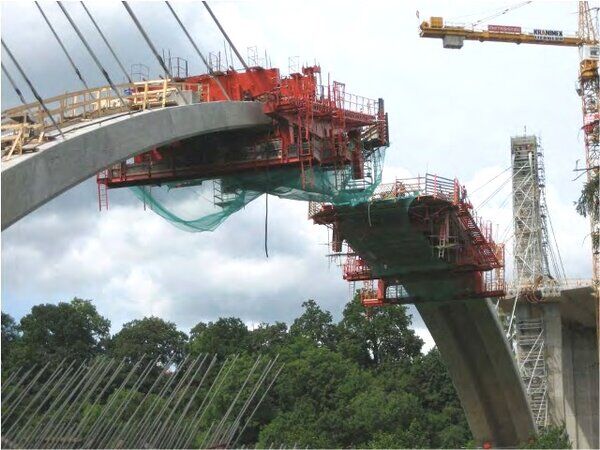

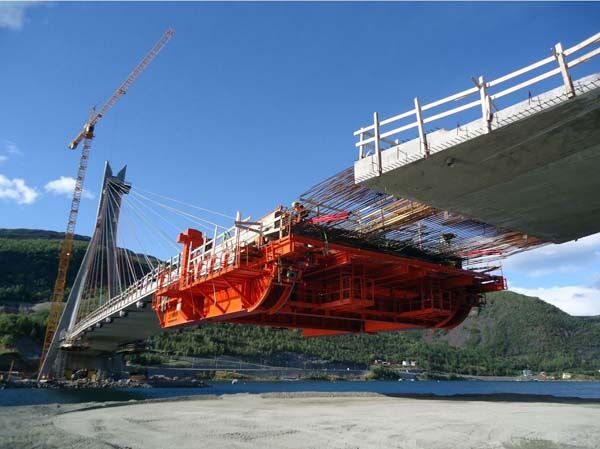

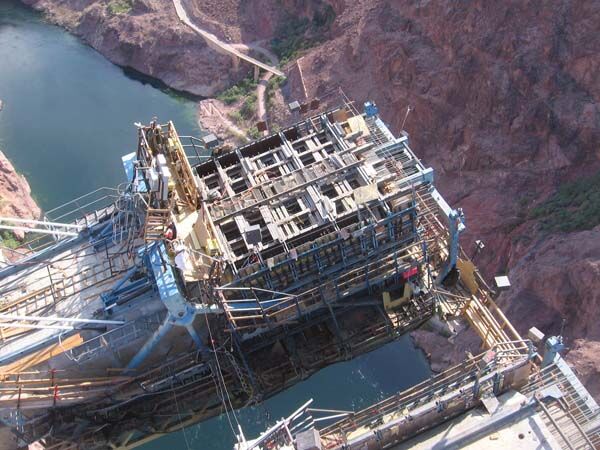

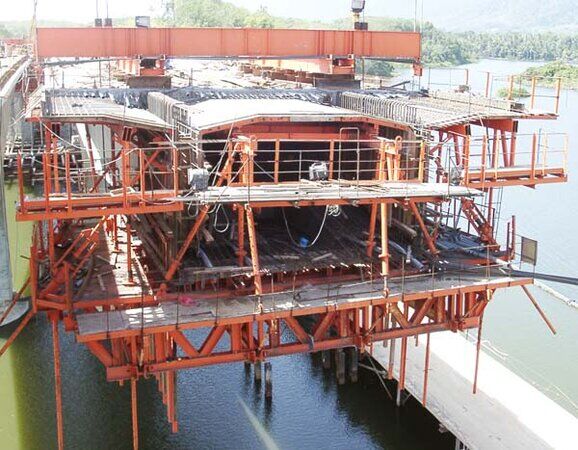

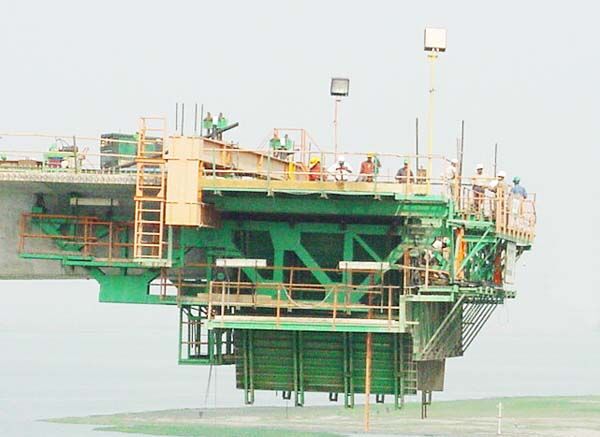

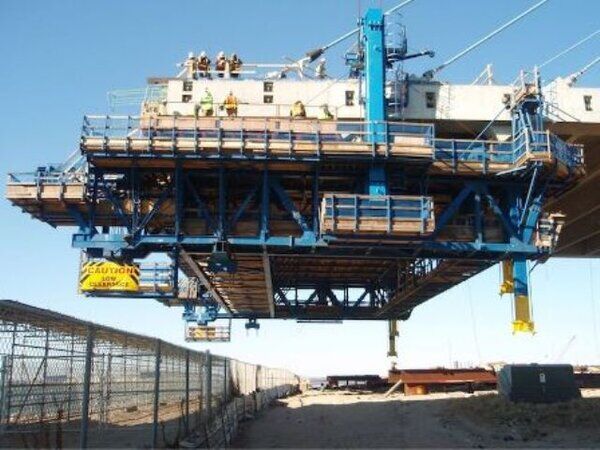

Underslung and balanced-cantilever form traveller installations, showing working platforms, formwork and position relative to the deck.
